This article examines a hybrid membrane architecture combining ceramic ultrafiltration, nanofiltration, and reverse osmosis, supported by hydrodynamic cavitation, targeted Clean-In-Place (CIP) strategies, and isobaric energy recovery.
Why Hybrid Treatment Matters for Industrial Water Reuse
Industrial wastewater reclamation is increasingly being viewed as a water-security strategy rather than only an environmental compliance activity. Every cubic metre of water recovered or water use optimised internally can reduce freshwater demand, wastewater-disposal requirements, and dependence on external water sources in the manufacturing sector. The challenge is uniformity of wastewater streams. Production changes, raw-material substitutions, cleaning operations and batch processes can alter flow, pH, temperature, salinity and organic loading over relatively short periods.
This variability is particularly important for membrane systems. Membranes can provide excellent separation, but their performance is strongly influenced by the quality of water reaching the membrane surface. A membrane selected only on the basis of nominal rejection may therefore perform poorly if upstream suspended solids, colloids, organic matter or scaling ions are not adequately controlled. A hybrid treatment system addresses this issue by treating the membrane system as a sequence of complementary barriers rather than as a single separation unit.

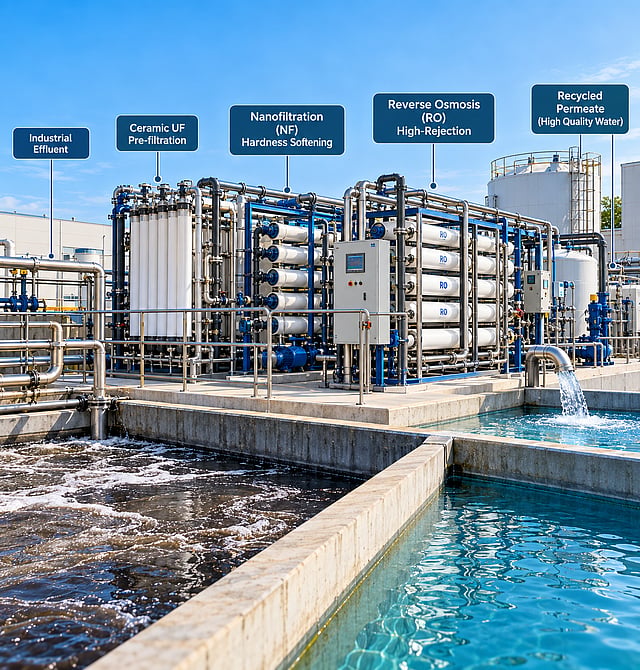

In the proposed architecture, ceramic UF provides a physically robust pretreatment barrier, NF selectively removes divalent ions and selected dissolved constituents, and RO performs the final high-rejection desalination step. The resulting process distributes the treatment burden and creates a more controlled environment for the sensitive downstream membrane stage. This is particularly relevant for industrial facilities considering high water recovery and ZLD.
The Industrial Water Challenge
Pharmaceutical, textile, speciality chemical, agrochemical and leather industries can generate wastewater containing high dissolved solids, refractory organic compounds, suspended and colloidal matter, hardness-forming ions, and variable pH and temperature. Such variability can make direct feeding of unconditioned wastewater to RO operationally difficult, with risks including concentration polarisation, organic and biological fouling, mineral scaling, increased transmembrane pressure and shortened membrane life.
A hybrid separation mechanism and wastewater treatment addresses this limitation by assigning different separation functions to different membrane stages. The process sequence proposed is: Raw Effluent and Biological Stage → Pre-filtration/Ceramic UF → NF Hardness Softening → High-Pressure RO and Recycled Permeate. Robust pretreatment protects downstream membrane-active layers, while selective NF reduces the divalent-ion burden and scaling before RO.
From Conventional Treatment to Water Recovery
Conventional industrial wastewater treatment generally focuses on reducing pollutant concentrations to a permitted discharge level. Water-reuse systems have a different objective: the treated water must be sufficiently consistent and of sufficient quality for a defined internal application. Cooling systems, boilers, process operations and utility services may each require different water-quality specifications. A reclamation plant must therefore be designed around the intended reuse pathway.
Biological and physicochemical treatment remain important because they can reduce biodegradable organic matter, suspended solids and other loads before membrane separation. Membrane treatment should not be considered a replacement for all upstream treatment. Instead, it provides a polishing and separation platform after the wastewater has been appropriately conditioned.
The advantage of a staged system is that each unit can be optimised for a narrower task. Removing colloids before RO reduces the probability of rapid fouling. Removing hardness-forming divalent ions before RO reduces the potential for scaling. The final RO stage can then focus primarily on dissolved-solids separation. This functional separation can improve operational stability and make the overall reclamation system easier to monitor and maintain.
| Stage | Typical Range | Primary Target | Pressure | Typical Flux |
|---|---|---|---|---|
| MF | 0.1–1.0 µm | TSS, bacteria, particulates | 0.5–2.5 bar | 60–120 LMH |
| UF | 0.01–0.1 µm | Macromolecules, colloids, emulsified oils | 1.0–4.5 bar | 40–80 LMH |
| NF | 200–1,000 Da | Ca²⁺, Mg²⁺, sulfate, colour, selected organics | 5–18 bar | 15–35 LMH |
| RO | <200 Da | Monovalent ions and dissolved solids | 15–70 bar | 10–25 LMH |
Ceramic UF is particularly useful where the feed contains substantial suspended and colloidal material because ceramic elements offer high mechanical strength and tolerance to repeated chemical cleaning. NF can function as a selective softening barrier: rejection of divalent species such as calcium, magnesium and sulfate can reduce the scaling potential of the downstream RO stage. RO then provides the final high-rejection dissolved-solids separation, producing permeate suitable for appropriate industrial reuse after confirming that the required water quality is met.
Membrane Materials and Configuration Choices
Membrane material and module configuration should be selected according to both contaminant characteristics and the operating environment. The original manuscript identifies PVDF and polypropylene among MF materials, while UF configurations include polymeric materials such as PES as well as robust ceramic materials based on alpha-alumina and titanium dioxide. Ceramic membranes can be attractive for difficult industrial feeds because of their mechanical strength and tolerance to repeated cleaning. For NF, thin-film composite membranes provide selective rejection of divalent ions and selected organic constituents. RO commonly relies on fully aromatic polyamide thin-film composite membranes for high dissolved-solids rejection.
For module configuration, hydraulic behaviour and maintenance are important considerations. Spiral-wound elements provide high membrane area within a compact footprint and are widely used for NF and RO. Tubular or monolithic ceramic configurations can offer advantages where the feed contains higher particulate or colloidal loading and where aggressive cleaning is anticipated. The selection should therefore consider feed pretreatment, expected fouling rate, cleaning requirements, pressure, temperature and available footprint rather than membrane rejection alone.
The objective is to create a compatible sequence in which the upstream unit protects the downstream unit. In this sense, membrane selection is a system-design decision. A high-rejection RO membrane cannot compensate indefinitely for inadequate pretreatment, and a robust UF stage has limited value if the permeate is subsequently operated outside the chemical or hydraulic limits of the downstream membrane. Compatibility across the complete treatment train is therefore central to reliable treatment.
Hydrodynamics and Concentration Polarisation
Stable membrane performance depends on controlling solute accumulation at the membrane surface. The water flux relationship is Jw = A(ΔP − Δπ), where A is the water permeability coefficient, ΔP is the applied pressure difference and Δπ is the osmotic pressure difference. As retained solutes accumulate near the membrane, concentration polarisation increases local osmotic pressure and can promote scaling and fouling.
The concentration polarisation can be expressed as β = (Cm − Cp)/(Cb − Cp) = exp(Jw/k), with k representing the mass-transfer coefficient. The latter is related to hydraulic conditions via Sherwood-number correlations. Wall shear stress is also important: τw = 8μ(v/dh), where μ is dynamic viscosity, v is cross-flow velocity, and dh is hydraulic diameter. Adequate cross-flow and shear help sweep deposited material from the membrane surface and maintain more stable flux.
Fouling Control and Clean-In-Place Strategy
Industrial membrane fouling may involve inorganic scale, organic deposits and biological films. Rather than relying on a universal CIP chemistry, cleaning regimes should be tailored to specific foulants. Acidic cleaning targets mineral deposits such as calcium carbonate and calcium sulfate, while alkaline cleaning with a chelating agent can address organic matrices. Biofouling control requires appropriate sanitisation using compatible non-oxidising biocides or peracetic acid.
A practical CIP sequence consists of three broad stages: low-pressure flushing to displace concentrated brine and loose debris; chemical recirculation followed by soaking to break down the foulant matrix; and high-velocity rinsing followed by verification. Normalised flux and differential pressure should be checked after cleaning before the system returns to normal operation. Chemical concentrations, pH, temperature and exposure times should always be controlled within the membrane manufacturer’s compatibility limits.
Monitoring, Automation and Preventive Maintenance
Membrane plants benefit substantially from systematic data collection. Flow, pressure, conductivity, temperature, recovery and normalised flux provide a basic operational picture. Trends are often more informative than individual readings. A gradual decline in normalised flux, accompanied by an increase in differential pressure, can indicate developing fouling, while a rise in conductivity may indicate changes in rejection or membrane condition.
Automation can help operators respond before a performance problem becomes severe. Alarms can be established for pressure, flow, conductivity and other critical parameters. Automated flushing sequences can help control deposits, while planned CIP can be triggered by predefined performance criteria. However, automated control should operate within safe limits established during design and commissioning.
Preventive maintenance should also include inspection of pumps, valves, pressure vessels, instrumentation and energy-recovery equipment. Membrane replacement should be based on performance and lifecycle economics rather than age alone. A well-maintained system can provide more predictable water quality and reduce the risk of unplanned shutdowns.
Industrial Sector Relevance in India
Textile manufacturing is an important application because wastewater can contain colour, salts, surfactants, suspended solids, and refractory organic compounds. Where the feed is adequately conditioned, UF can reduce particulate and colloidal loading and NF can provide selective separation of hardness and other target constituents. RO can then produce a low-TDS permeate for appropriate reuse.
Pharmaceutical and speciality chemical facilities can present a different challenge because wastewater composition may change substantially between production campaigns. Solvents, process chemicals, dissolved salts, and refractory organic matter can occur in combinations that are difficult to treat with a single process. Equalisation and proper feed characterisation become particularly important before membrane selection. Ceramic membrane pretreatment may be advantageous where the wastewater contains variable suspended or colloidal loads.
Agrochemical manufacturing can generate complex streams containing dissolved salts and process-specific organic compounds. In such systems, monitoring the feed and controlling shock loads are critical. Leather processing may generate wastewater with high organic loading, suspended solids, salts, and hardness-forming constituents. The hybrid approach can be adapted to these sectors, but the exact treatment sequence must remain site-specific.
The common engineering principle is that membrane selection should follow wastewater characterisation. A generic UF-NF-RO train may provide a useful starting framework, but flow equalisation, biological treatment, chemical conditioning, membrane area, recovery, cleaning strategy, and concentrate management should be determined based on actual operating data.
Designing for Variable Wastewater Quality
A reliable reclamation system should be designed around ranges of operating conditions rather than a single laboratory sample. Representative monitoring should cover hydraulic flow, pH, temperature, conductivity or TDS, turbidity, suspended solids, COD, hardness, sulfate, silica and other contaminants relevant to the industrial process. Where production changes are significant, sampling should cover different operating campaigns.
Equalisation can reduce the impact of short-term fluctuations by providing a more stable feed to downstream treatment. Feed monitoring can then be linked to operating decisions, such as adjusting pretreatment, controlling recovery or initiating additional cleaning. This approach is particularly important for industrial facilities where membrane performance can deteriorate rapidly following an unexpected change in feed composition
The design should also consider what happens to the concentrate. Increasing RO recovery reduces the volume of reject but increases the concentration of retained salts and other constituents. At high recovery, scaling potential can rise sharply. Therefore, maximum recovery should not be selected simply because it produces more permeate. It should be established by balancing water recovery, scaling risk, energy consumption, membrane life, and downstream concentrate management requirements.
Efficiency Opportunity for Energy Recovery
High-pressure RO can represent a major operating cost because feed pressures may reach 70 bar. A significant portion of this hydraulic energy remains in the high-pressure concentrate stream. Isobaric pressure exchangers can transfer energy from the concentrate to the incoming feed without direct mixing of the two streams.
| Configuration | Specific Energy | Reported Performance |
|---|---|---|
| Conventional RO | 4.5–5.2 kWh/m³ | Baseline |
| RO + Turbocharger | 3.2–3.6 kWh/m³ | ~28% reduction; 18–22 month ROI |
| RO + Isobaric Rotary Exchanger | 1.8–2.2 kWh/m³ | >55% reduction; 12–15 month ROI |
These performance figures are system-specific estimates rather than universal guarantees. Real-world energy demand and payback will vary depending on feed salinity, recovery rate, system pressure, flow rate, electricity costs, equipment selection, and operational parameters
Balancing Recovery, Energy and Cost
High recovery is attractive because it increases the volume of water available for reuse. However, the relationship between recovery and operating cost is not linear. As recovery increases, the concentration of salts in the reject stream rises and the osmotic pressure opposing water transport becomes greater. Additional pressure may therefore be required, while the probability of scaling may increase.
Energy recovery provides an important opportunity in high-pressure RO. The proposed isobaric rotary exchanger configuration transfers hydraulic energy from the concentrate stream to the incoming feed. The original manuscript reports a reduction in specific energy consumption from approximately 4.5–5.2 kWh/m³ for conventional high-pressure RO to 1.8–2.2 kWh/m³ with an isobaric rotary exchanger. It also reports more than 55% energy reduction and an estimated 12–15-month ROI under the stated operating assumptions. These values should be treated as system-specific estimates; actual performance depends on pressure, recovery, flow, electricity tariffs and equipment selection.
Economic assessment should include capital expenditure, electricity, chemicals, membrane replacement, maintenance and concentrate management. Water savings should also be valued where freshwater procurement is significant. A lifecycle assessment provides a better basis for decision-making than comparing equipment purchase prices alone.
Sustainability and ZLD Perspective
Hybrid membrane reclamation can support circular water management by recovering water that would otherwise be discharged as wastewater from the industrial system. Reduced freshwater abstraction can improve local water resilience, while reduced discharge volumes can simplify downstream wastewater management. Energy recovery can further improve environmental performance by reducing the electricity required for high-pressure pumping
However, sustainability should be evaluated across the complete treatment chain. Chemicals used for pretreatment and CIP, membrane manufacturing and replacement, sludge generation, concentrate treatment and the energy required by evaporators or crystallizers in ZLD systems all contribute to the overall environmental footprint. The most sustainable design is therefore not necessarily the one with the highest membrane recovery.
For ZLD facilities, the membrane system is one component of a broader treatment strategy. RO can recover a substantial fraction of water while concentrating the remaining dissolved solids. Depending on the concentrate characteristics, further evaporation, crystallisation or other solids-management processes may be required. Successful ZLD therefore depends on coordinating membrane recovery with downstream concentrate capacity.
Practical Roadmap for Implementation of Emerging Membrane Systems
A practical implementation can be organised into five stages. First, characterise the wastewater over representative production conditions. Second, establish the pretreatment requirements and target reuse quality. Third, evaluate the membrane sequence and operating envelope, using pilot testing where the wastewater is unusually variable or difficult. Fourth, integrate instrumentation, CIP facilities and energy recovery into the design. Fifth, establish a performance-monitoring program covering water quality, recovery, energy and maintenance.
Pilot testing can be particularly valuable because membrane performance is influenced by real wastewater interactions that may not be captured by individual laboratory parameters. Pilot data can help determine flux, rejection, cleaning frequency, chemical demand and concentrate characteristics. These results can then be used to refine full-scale equipment sizing and lifecycle cost estimates.
The implementation should also include operator training. Membrane plants require disciplined chemical handling, routine monitoring and interpretation of performance trends. A technically advanced system can underperform if operators lack clear procedures for startup, shutdown, flushing, CIP and abnormal feed conditions. Standard operating procedures should therefore be developed alongside the equipment design.
Integrating Membrane Treatment with Overall Plant Management
Hybrid membrane treatment should not be operated as an isolated equipment package. Its performance is closely connected to upstream production practices, wastewater segregation, equalization, chemical management and downstream water reuse. Industrial facilities can improve membrane performance by identifying streams that are substantially different in composition and, where feasible, segregating high-strength or chemically incompatible streams before they reach the common treatment plant. Such source control reduces the contaminant burden presented to the membrane system and can improve the predictability of treatment.
Wastewater segregation is particularly valuable when a small-volume stream contains a disproportionately high concentration of a specific contaminant. Mixing that stream with a larger flow can spread the contaminant throughout the treatment system and increase the chemical or energy requirement for its removal. Where source segregation is practical, targeted treatment can be considered before blending. This can reduce the load on UF, NF and RO and may also simplify concentrate management.
Chemical Treatment Regime
Chemical management is another important consideration. Excessive chemical dosing during pretreatment can increase dissolved solids or generate additional residuals that subsequently affect membrane operation. Conversely, inadequate dosing can allow scaling or fouling precursors to reach the membrane. The treatment plant should therefore be operated using measured feed characteristics and defined control ranges rather than relying solely on fixed chemical doses.
Automation can help operators respond before a performance problem becomes severe. Alarms can be established for pressure, flow, conductivity and other critical parameters. Automated flushing sequences can help control deposits, while planned CIP can be triggered by predefined performance criteria. However, automated control should operate within safe limits established during design and commissioning.
Preventive maintenance should also include inspection of pumps, valves, pressure vessels, instrumentation and energy-recovery equipment. Membrane replacement should be based on performance and lifecycle economics rather than age alone. A well-maintained system can provide more predictable water quality and reduce the risk of unplanned shutdowns.
Textile manufacturing is an important application because wastewater can contain colour, salts, surfactants, suspended solids, and refractory organic compounds. Where the feed is adequately conditioned, UF can reduce particulate and colloidal loading and NF can provide selective separation of hardness and other target constituents. RO can then produce a low-TDS permeate for appropriate reuse.
Pharmaceutical and speciality chemical facilities can present a different challenge because wastewater composition may change substantially between production campaigns. Solvents, process chemicals, dissolved salts, and refractory organic matter can occur in combinations that are difficult to treat with a single process. Equalisation and proper feed characterisation become particularly important before membrane selection. Ceramic membrane pretreatment may be advantageous where the wastewater contains variable suspended or colloidal loads.
Agrochemical manufacturing can generate complex streams containing dissolved salts and process-specific organic compounds. In such systems, monitoring the feed and controlling shock loads are critical. Leather processing may generate wastewater with high organic loading, suspended solids, salts, and hardness-forming constituents. The hybrid approach can be adapted to these sectors, but the exact treatment sequence must remain site-specific
The common engineering principle is that membrane selection should follow wastewater characterisation. A generic UF-NF-RO train may provide a useful starting framework, but flow equalisation, biological treatment, chemical conditioning, membrane area, recovery, cleaning strategy, and concentrate management should be determined based on actual operating data.
A reliable reclamation system should be designed around ranges of operating conditions rather than a single laboratory sample. Representative monitoring should cover hydraulic flow, pH, temperature, conductivity or TDS, turbidity, suspended solids, COD, hardness, sulfate, silica and other contaminants relevant to the industrial process. Where production changes are significant, sampling should cover different operating campaigns.
Equalisation can reduce the impact of short-term fluctuations by providing a more stable feed to downstream treatment. Feed monitoring can then be linked to operating decisions, such as adjusting pretreatment, controlling recovery or initiating additional cleaning. This approach is particularly important for industrial facilities where membrane performance can deteriorate rapidly following an unexpected change in feed composition.
The design should also consider what happens to the concentrate. Increasing RO recovery reduces the volume of reject but increases the concentration of retained salts and other constituents. At high recovery, scaling potential can rise sharply. Therefore, maximum recovery should not be selected simply because it produces more permeate. It should be established by balancing water recovery, scaling risk, energy consumption, membrane life, and downstream concentrate management requirements.
Efficiency Opportunity for Energy Recovery
High-pressure RO can represent a major operating cost because feed pressures may reach 70 bar. A significant portion of this hydraulic energy remains in the high-pressure concentrate stream. Isobaric pressure exchangers can transfer energy from the concentrate to the incoming feed without direct mixing of the two streams.
| Configuration | Specific Energy | Reported Performance |
|---|---|---|
| Conventional RO | 4.5–5.2 kWh/m³ | Baseline |
| RO + Turbocharger | 3.2–3.6 kWh/m³ | ~28% reduction; 18–22 month ROI |
| RO + Isobaric Rotary Exchanger | 1.8–2.2 kWh/m³ | >55% reduction; 12–15 month ROI |
These performance figures are system-specific estimates rather than universal guarantees. Real-world energy demand and payback will vary depending on feed salinity, recovery rate, system pressure, flow rate, electricity costs, equipment selection, and operational parameters
High recovery is attractive because it increases the volume of water available for reuse. However, the relationship between recovery and operating cost is not linear. As recovery increases, the concentration of salts in the reject stream rises and the osmotic pressure opposing water transport becomes greater. Additional pressure may therefore be required, while the probability of scaling may increase.
Energy recovery provides an important opportunity in high-pressure RO. The proposed isobaric rotary exchanger configuration transfers hydraulic energy from the concentrate stream to the incoming feed. The original manuscript reports a reduction in specific energy consumption from approximately 4.5–5.2 kWh/m³ for conventional high-pressure RO to 1.8–2.2 kWh/m³ with an isobaric rotary exchanger. It also reports more than 55% energy reduction and an estimated 12–15-month ROI under the stated operating assumptions. These values should be treated as system-specific estimates; actual performance depends on pressure, recovery, flow, electricity tariffs and equipment selection.
Economic assessment should include capital expenditure, electricity, chemicals, membrane replacement, maintenance and concentrate management. Water savings should also be valued where freshwater procurement is significant. A lifecycle assessment provides a better basis for decision-making than comparing equipment purchase prices alone.
Hybrid membrane reclamation can support circular water management by recovering water that would otherwise be discharged as wastewater from the industrial system. Reduced freshwater abstraction can improve local water resilience, while reduced discharge volumes can simplify downstream wastewater management. Energy recovery can further improve environmental performance by reducing the electricity required for high-pressure pumping.
However, sustainability should be evaluated across the complete treatment chain. Chemicals used for pretreatment and CIP, membrane manufacturing and replacement, sludge generation, concentrate treatment and the energy required by evaporators or crystallizers in ZLD systems all contribute to the overall environmental footprint. The most sustainable design is therefore not necessarily the one with the highest membrane recovery.
For ZLD facilities, the membrane system is one component of a broader treatment strategy. RO can recover a substantial fraction of water while concentrating the remaining dissolved solids. Depending on the concentrate characteristics, further evaporation, crystallisation or other solids-management processes may be required. Successful ZLD therefore depends on coordinating membrane recovery with downstream concentrate capacity.
Practical Roadmap for Implementation of Emerging Membrane Systems
A practical implementation can be organised into five stages. First, characterise the wastewater over representative production conditions. Second, establish the pretreatment requirements and target reuse quality. Third, evaluate the membrane sequence and operating envelope, using pilot testing where the wastewater is unusually variable or difficult. Fourth, integrate instrumentation, CIP facilities and energy recovery into the design. Fifth, establish a performance-monitoring program covering water quality, recovery, energy and maintenance.
Pilot testing can be particularly valuable because membrane performance is influenced by real wastewater interactions that may not be captured by individual laboratory parameters. Pilot data can help determine flux, rejection, cleaning frequency, chemical demand and concentrate characteristics. These results can then be used to refine full-scale equipment sizing and lifecycle cost estimates.
The implementation should also include operator training. Membrane plants require disciplined chemical handling, routine monitoring and interpretation of performance trends. A technically advanced system can underperform if operators lack clear procedures for startup, shutdown, flushing, CIP and abnormal feed conditions. Standard operating procedures should therefore be developed alongside the equipment design.
Integrating Membrane Treatment with Overall Plant Management
Hybrid membrane treatment should not be operated as an isolated equipment package. Its performance is closely connected to upstream production practices, wastewater segregation, equalization, chemical management and downstream water reuse. Industrial facilities can improve membrane performance by identifying streams that are substantially different in composition and, where feasible, segregating high-strength or chemically incompatible streams before they reach the common treatment plant. Such source control reduces the contaminant burden presented to the membrane system and can improve the predictability of treatment.
Wastewater segregation is particularly valuable when a small-volume stream contains a disproportionately high concentration of a specific contaminant. Mixing that stream with a larger flow can spread the contaminant throughout the treatment system and increase the chemical or energy requirement for its removal. Where source segregation is practical, targeted treatment can be considered before blending. This can reduce the load on UF, NF and RO and may also simplify concentrate management.
Chemical Treatment Regime
Chemical management is another important consideration. Excessive chemical dosing during pretreatment can increase dissolved solids or generate additional residuals that subsequently affect membrane operation. Conversely, inadequate dosing can allow scaling or fouling precursors to reach the membrane. The treatment plant should therefore be operated using measured feed characteristics and defined control ranges rather than relying solely on fixed chemical doses.
The relationship between production and wastewater treatment should also be recognised. Changes in production schedules can produce predictable changes in wastewater quality. Communication between production and environmental-management teams can therefore provide early warning of anticipated changes in feed characteristics. This information can be used to adjust equalisation, membrane recovery or cleaning schedules within approved operating limits.
A well-integrated plant also considers the final destination of reclaimed water. When permeate is returned to production, the receiving process's quality requirements should be communicated to the treatment team. This allows the treatment plant to focus monitoring on parameters that are genuinely important for the reuse application. Such integration supports both environmental performance and operational efficiency.
The quality target for reclaimed water should be defined by its intended end use. Water for cooling applications may require control of suspended solids, hardness and dissolved salts, while boiler-related applications can impose more stringent requirements on dissolved solids and specific ions. Process reuse may additionally require control of colour, trace organics or other production-sensitive contaminants. Consequently, the treatment objective should be expressed as a reuse specification rather than simply as a percentage removal.
This approach also helps determine the appropriate point of quality control. UF permeate can be evaluated for turbidity and colloidal stability; NF performance can be assessed through conductivity, hardness, and selected-ion measurements; and RO permeate can be evaluated for dissolved solids and other parameters relevant to the reuse application. Monitoring at each stage allows operators to identify where performance is changing and prevents problems from being hidden within the overall plant average.
Water quality consistency is particularly important for industrial reuse. A reclaimed-water system that occasionally produces excellent quality but frequently experiences excursions may not be acceptable for continuous process use. Hybrid membrane systems can improve consistency by providing multiple barriers, but this benefit is realised only when upstream treatment and operating conditions remain stable.
Conclusion
Advanced hybrid membrane treatment can provide a practical pathway for industrial wastewater reclamation when conventional treatment alone cannot consistently achieve the required quality and recovery. The strength of the approach lies in integrating complementary barriers rather than relying on a single membrane. Ceramic UF can provide robust removal of suspended and colloidal material; NF can selectively reduce hardness-forming divalent ions and other target constituents; and RO can provide high rejection of dissolved salts. Hydrodynamic control, monitoring and targeted CIP then become essential for maintaining the performance of the membrane train over time.
For Indian industries, the most effective design will be site-specific. Wastewater characterisation should guide pretreatment, membrane selection, recovery targets and concentrate management. Energy recovery should be evaluated as part of the complete lifecycle cost, while reclaimed-water quality should be linked directly to its intended industrial use. ZLD should likewise be considered an integrated water and solids management strategy rather than a membrane-only objective.
The combination of water recovery, energy efficiency, preventive maintenance and responsible concentrate management can help industries reduce freshwater demand while improving treatment reliability. With appropriate design, monitoring and operator training, hybrid membrane systems can become an important component of sustainable industrial water management and circular water-use strategies in India.
