AmaDrainer 3 series

Water Today

.
2 min read
KSB SE & Co

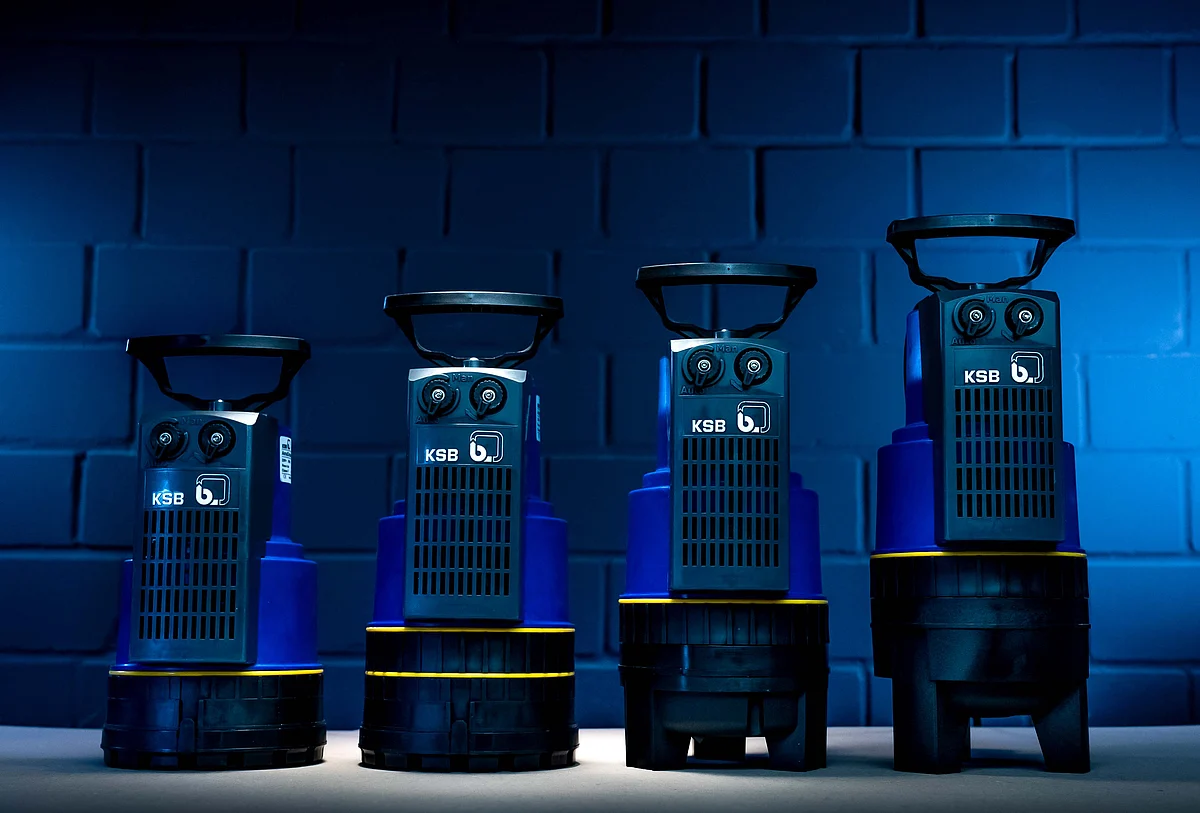

The AmaDrainer 3 is a compact design with integrated float switch and a maximum diameter of 155mm, making the pump suitable for narrow spaces such as light wells, for example. The maximum head is 11.3 metres. All four sizes are designed for continuous duty at a fluid temperature of up to 70 °C and for very short periods even up to 90 °C.

A new feature is the integrated low water level intake. By removing the suction strainer the two smaller pump sizes can achieve residual water levels as low as 2mm. The larger pump sizes are characterised by free passages of up to 35mm, so they can also transport coarse matter contained in the wastewater. For aggressive wastewater and other fluids handled, a special variant is available for all sizes.

All four pump sets feature a high-quality plastic casing, making the, lightweight and highly corrosion-resistant. A jacket-cooled motor permits operation even when the motor is not submerged. In addition, AmaDrainer 3 comes with integrated motor protection. Fitted with a 10-metre power cable as standard, the pump set allows for more flexible handling. The submersible motor pumps are very robust and provide a high operating reliability.

The AmaDrainer 3 series is highly versatile and can be used for draining shafts and cellar rooms as well as for extracting water from reservoirs and rivers. In emergency situations the pumps can be used for applications such as draining external basement stairwells and underground passages. The pump sets are supplied ready to be plugged in, enabling fast installation and commissioning.
